Guide Rollers FR

Smooth running for thread and tape guidance
  1. Applicable up to 5 000 m⁄min without any restriction
  2. Very smooth running due to integrated bearing construction
  3. Longer service life due to wear resistant ceramic coating

Temco guide rollers come in various shell shapes and materials and are equipped both with or without a shaft. They are characterized by their compact building method with low rotating mass and low bearing friction moment. Yarn speeds of up to 5 000 m/min are possible.

The lubricant has been specially selected to satisfy the requirements of guide rollers, thus ensuring smooth running and long lifetime. The guide rollers are equipped with a special dust shield cover on either end.

The shells are made of steel, aluminum or innovative synthetic material. For special applications, guide rollers with chromium-plated or ceramic-coated shells are available.

Guide rollers FR35 and FR40 series

Smooth-running yarn guide rollers are available to guide threads and tapes in textile and technical applications.

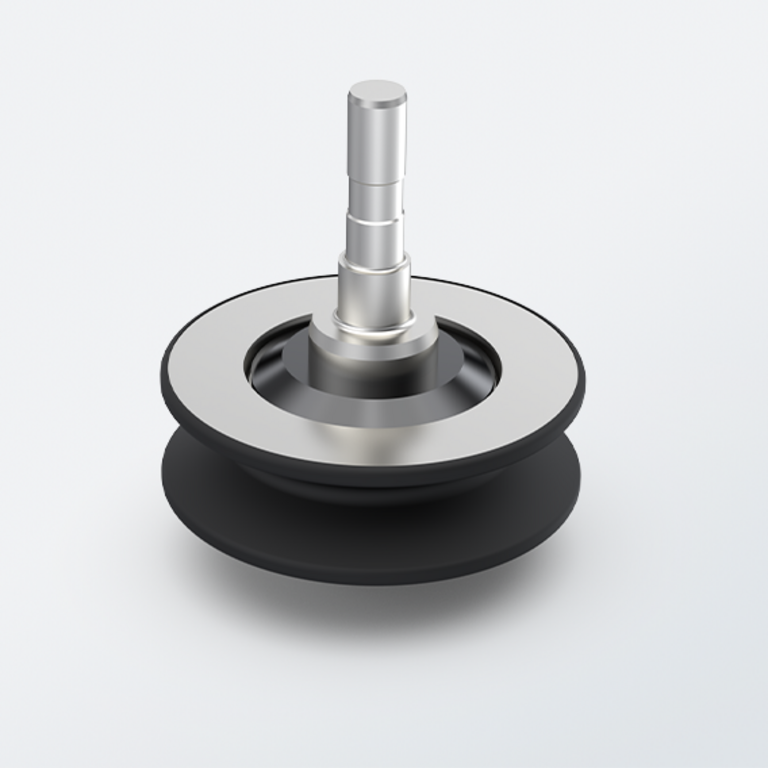

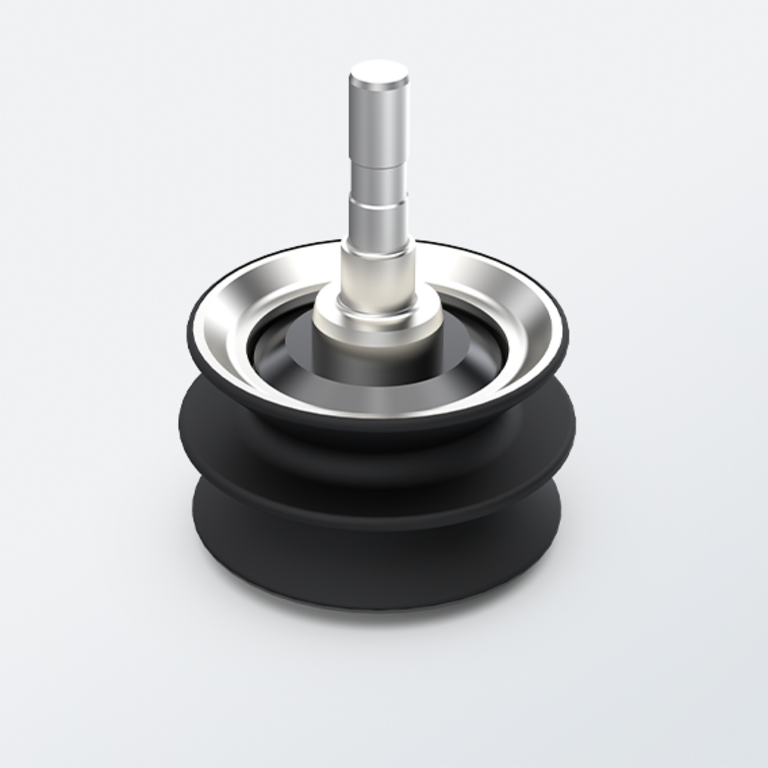

The extremely smooth-running yarn guide rollers FR3530-02, FR4018-01 and FR4030 are especially suitable for all processes where low-tension forces or low-yarn deflections and gentle yarn guiding are required.

Temco guide rollers FR include various jacket shapes and materials and are equipped with or without a shaft. They are characterized by their compact building method with low rotating mass and low starting and bearing friction moment. Yarn speeds of up to 6 500 m/min are possible.

Product features

  • Lubrication/sealing: The lubricant has been specially selected to satisfy the requirements of guide rollers, thus ensuring smooth running and long lifetime. The guide rollers are equipped with a special dust shield cover on either end.

  • Shells/surfaces: The roller shells are made of steel, aluminum or innovative synthetic materials with special features. For special applications guide rollers with chromium-plated or ceramic-coated shells are provided.

Area of application

The extremely smooth-running yarn guide rollers are suitable for all processes, where low tension forces and gentle yarn guiding are required. The most important applications are in high-speed processes like the spin draw texturing process of Bulked Continuous Filament (BCF) yarn, the Fully Drawn Yarn (FDY), or the Spin Drawn Yarn (SDY) process for technical yarns.

Guide roller FR26 series

The latest generation of the smooth-running guide rollers FR26 series are a milestone in the field of easy running guiding elements.

Bearing friction is reduced by 50% which means the driving force can be reduced by the same extent. This enables guidance of Lycra at very low tension levels.

Product features

  • Reduced yarn tension
  • Smooth running
  • No initial run-in period required
  • Low moment of inertia
  • Long service life
  • Different roller shell forms
  • Variable surfaces

In addition to the standard shapes, intermediate sizes and customized solutions of the guide roller series FR26 are also available.
