Air Interlacing Jets

The right jet solution for each process
  1. Optimum performance
  2. High positional uniformity
  3. High process security
  4. Flexible solutions for all machines

Temco's air interlacing jets are suitable for all textile processes and various applications, providing both a productivity increase and high yarn quality.

State-of-the-art quality control ensures a continuously high-quality standard which is of paramount importance for products used in large numbers.

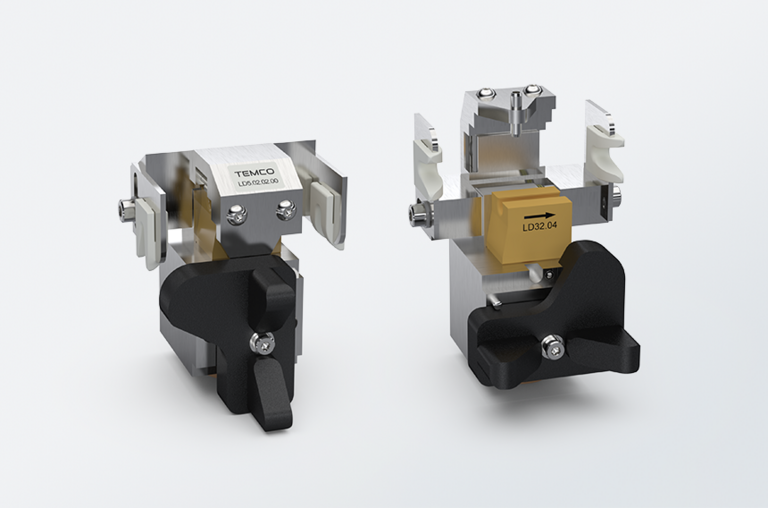

LD32 series

Tangling jet for BCF yarns and technical yarns

Temco provides the tanglelacing jet LD32 in modular design to comply with the requirements for ever-increasing thread speeds for processing technical yarns, e.g. glass fiber and carpet yarns.

The Temco LD32 fits on all spindraw texturing machines known on the market for initial equipment or upgrading. These jets are suitable to process yarns up to dtex 10 000 at thread speeds of up to 4 000 m/min depending on the relevant titer. Suitable material allows a good reproduction of geometry, shape and surface of air and thread ducts, while ensuring a high uniformity.

The interchangeable ceramic inserts allow to set either hard, soft, short or long knots in line with the requested tanglelacing.

Product features

  • Function: tangling jet
  • Design: open/closed (automatically)
  • Number of threads: 1, 2, 3, 4, 6
  • Yarns: BCF and technical yarns (e.g. PA, PES, PP)
  • Titer range: up to 10 000 dtex

Product advantages

  • Automatic stop of air-flow for less air consumption
  • Automatic open/close for safe threading
  • Long service life (ceramic inserts)
  • Modular design (interchangeable inserts)
  • Adjustable yarn guides for flat or textured yarns

LD5 series

Tangling jet for BCF and technical yarns

Temco has designed the tangling jet LD5 incorporating the field-proven engineering and technology of jet LD32 to meet the market requirements. The LD5 jet is meant to operate on winders as well as on air tangling installations, air texturing machines and spinning machines to process in tangled condition flat and textured single and multiple yarns.

Special application fields cover winders for Bulked Continuous Filament (BCF) yarns, for textile areas for instance in carpets, extending also to single, multiple and blended yarns for industrial applications. Titers up to dtex 10 000 can be handled. A further interesting application field for the LD5 is the manufacture of inorganic materials such as glass fibers. There are various jet inserts available with different air ducts to suit the yarns and titers in processing. The insert itself is made of high-resistant ceramics.

Product features

  • Function: tangling/commingling jet
  • Design: open/closed (manual)
  • Number of threads: 1 thread
  • Yarns: BCF and technical yarns (e.g. PA, PES, PP)
  • Titer range: up to 10 000 dtex

Product advantages

  • Automatic stop of air-flow for less air consumption
  • Automatic open/close for safe threading
  • Long service life (ceramic inserts)
  • Modular design (interchangeable inserts)
  • Easy adaptation into the machine
